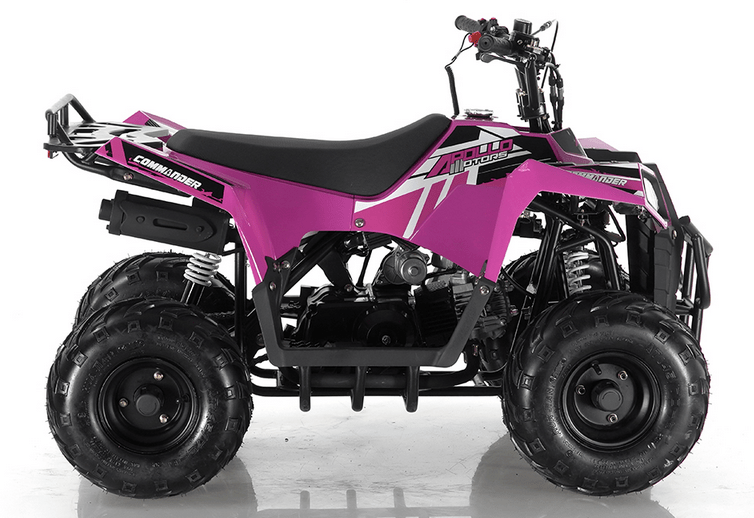

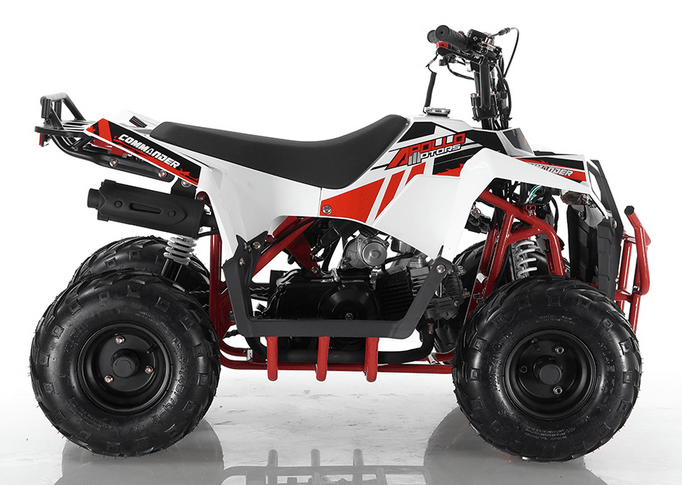

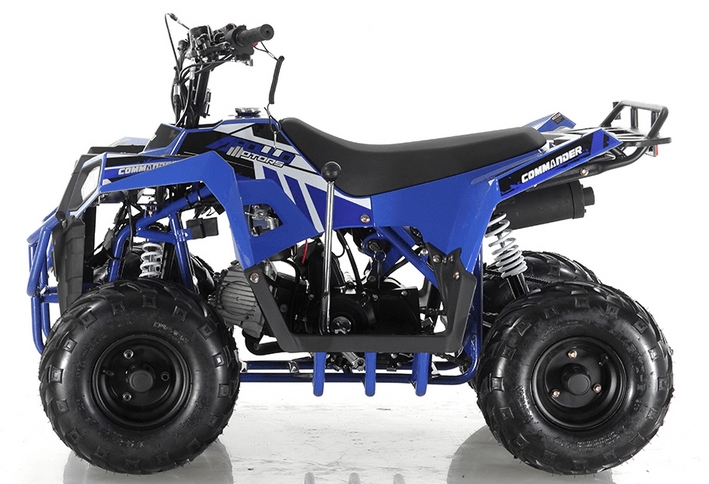

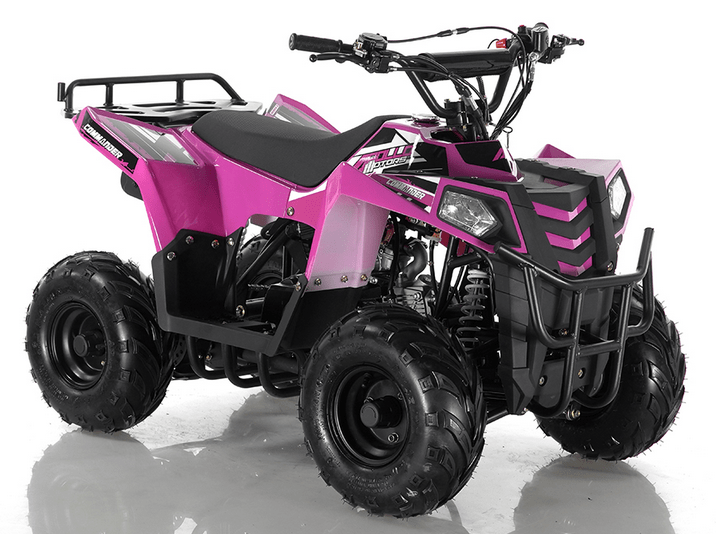

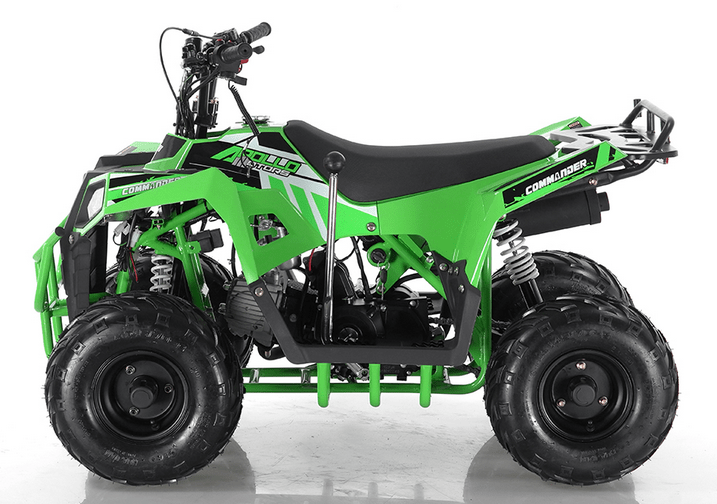

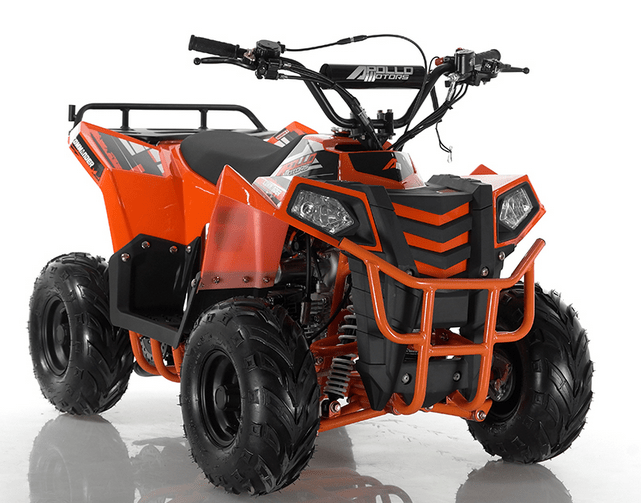

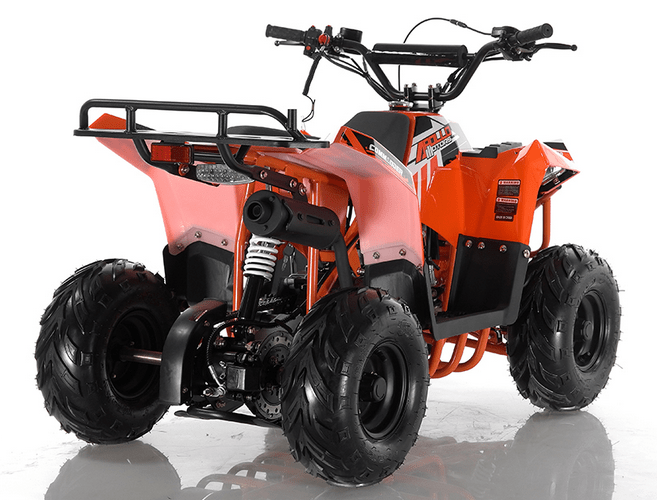

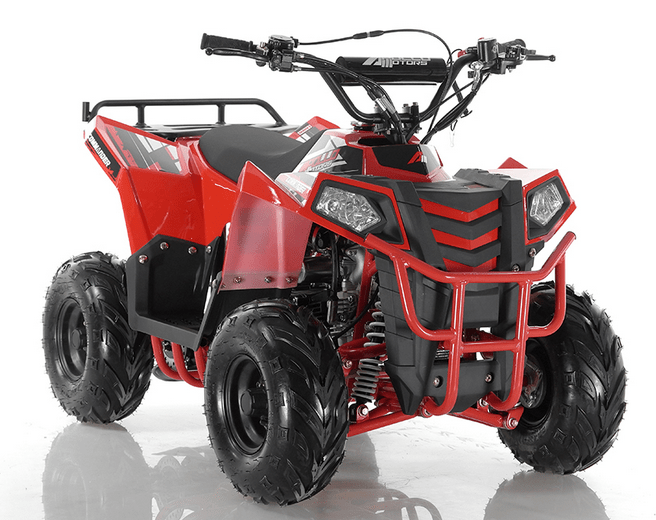

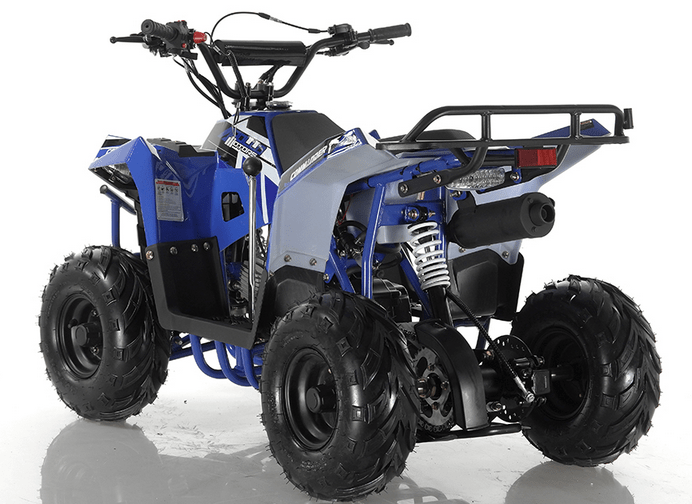

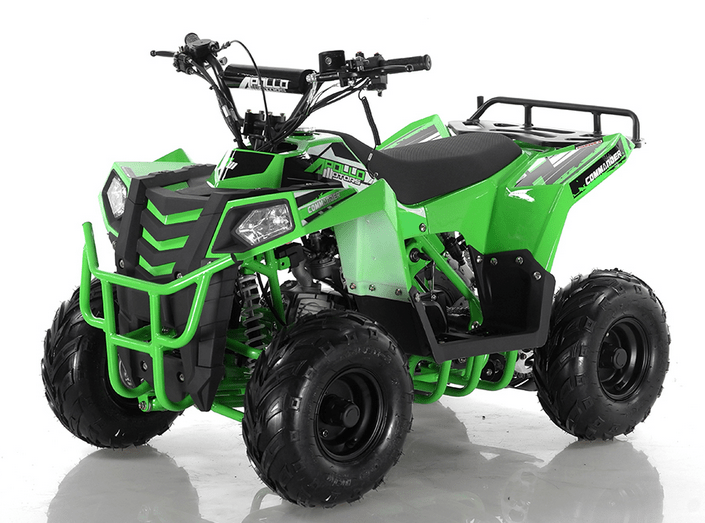

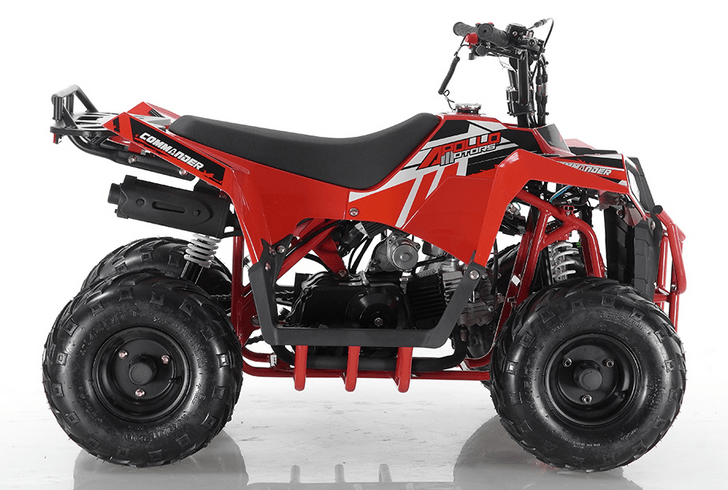

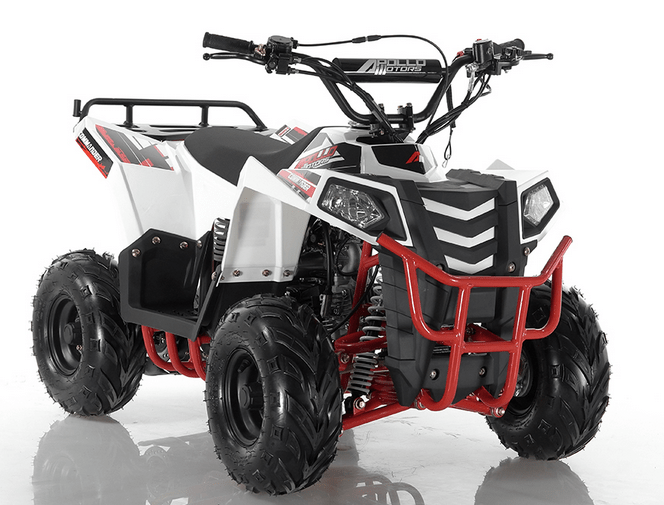

Apollo Mini-Commander 110 ATV (w/REVERSE)

$895.00

Clear
SKU: N/A Categories: , Tags: ,

Description

Apollo Raises the Quality Bar! …..You will See & Feel the difference!

Easy to Operate Stick Shift Transmission with Reverse!

FREE SHIPPING TO MOST OF THE CONTINENTAL US

Features & Specifications:

  • Model: AGA-10
  • Seat Height: 22.8″
  • Model series: commander
  • Curb weight: 169.7 lbs.
  • Engine Type: Single cylinder 4 stroke
  • Rated Payload: 143.3 lbs.
  • Clutch: automatic
  • MAX Speed: 40km/h
  • Displacement: 106.7cc
  • MINI turning radius: 98.4″
  • Bore Stroke: 52.4mm×49.5mm
  • MAX gradeability: 10°
  • Compression rate: 9.7:1
  • Front Brake: Drum brake-handle
  • MX Power: 5.0kW/8000rpm
  • Rear Brake: Hydraulic brake-handle
  • MX torque: 5.9N.m/6000rpm
  • Front Tire: 145/70-6
  • Idle Speed: 1500±100r/min
  • Rear Tire: 145/70-6
  • Mi. Fuel consumption: ≤367g/kw.h
  • Tire pressure F.: 10P.S.I.
  • Sparking mode: CDI
  • Tire pressure R.: 10P.S.I.
  • Starting mode: Electric
  • Driving Method: Chain Drive
  • Fuel: RQ-93
  • Clutch: automatic multichip
  • Lubricating System: Pressure and splash
  • Spark plug: LGD8TC
  • Engine Oil: SAE15W/40
  • Carburetor: PZ19
  • Vehicle desc: Single seat Chain drive Rear wheel drive
  • Battery: 12V、5Ah
  • Vehicle Type: G
  • Fuel Tank: 2.5L
  • Product Size: 47.2″×29.3″×30.9″
  • Packing Size: 44.8″×27.5″×23.2″
  • Axle Base: 31.6″
  • N.W.: 165.3 lbs.
  • Track front: 24.2″
  • G.W.: 194 lbs.
  • Track rear: 21.6″
  • Ground clearance: 3.1″



Additional information

Weight 194 lbs
Dimensions 44.8 × 37.5 × 23.2 in
COLORS:

Black, White, Blue, Red, Purple, Green
